How Do Series-Parallel Circuits Compare In Electrical Applications?

Series-parallel circuits offer a unique blend of characteristics, and at COMPARE.EDU.VN, we aim to dissect and compare these circuits in depth. Understanding the differences and advantages of series, parallel, and series-parallel configurations is crucial for effective circuit design and troubleshooting. Discover clarity, gain insights, and make informed decisions about electrical circuits, empowering you with knowledge of voltage distribution, current flow, and equivalent resistance to confidently navigate any electrical challenge.

1. What is a Series Circuit?

A series circuit is an electrical circuit where components are connected along a single path, so the current flows through each component sequentially. In a series circuit, the current remains the same across all components, while the voltage is divided among them. This contrasts with parallel circuits, where the voltage remains constant, and the current is divided. Understanding the nuances of series circuits is critical for basic electronics and circuit design, making it a fundamental concept for engineers and hobbyists alike.

1.1 What are the Key Characteristics of a Series Circuit?

Series circuits are characterized by a single path for current flow, uniform current across all components, and voltage division among the components. The total resistance in a series circuit is the sum of the individual resistances, and if one component fails, the entire circuit is interrupted.

Single Path: There is only one route for the current to flow.
Uniform Current: The current (I) is the same through all components.
Voltage Division: The total voltage (V) is divided among the components.
Total Resistance: The total resistance (Rtotal) is the sum of individual resistances (R1 + R2 + R3 + …).
Failure Effect: If one component fails, the entire circuit stops working.

1.2 How to Calculate Total Resistance in a Series Circuit?

Calculating the total resistance in a series circuit is straightforward: add up the individual resistances of each component. For example, if you have three resistors with values of 10 ohms, 20 ohms, and 30 ohms, the total resistance would be 60 ohms. The formula for total resistance in a series circuit is:

Rtotal = R1 + R2 + R3 + ... + Rn

Where:

Rtotal is the total resistance of the series circuit
R1, R2, R3, …, Rn are the resistances of the individual resistors

1.3 What are the Advantages and Disadvantages of Series Circuits?

Series circuits have some advantages, such as simplicity and ease of design, but they also come with significant drawbacks.

Advantages:

Simple Design: Easy to understand and implement.
Current Control: Ensures the same current flows through all components, which can be crucial in certain applications.
Overload Protection: Can be used to limit current and protect components from overcurrent situations.

Disadvantages:

Single Point of Failure: If one component fails, the entire circuit breaks down.
Uneven Voltage Distribution: Voltage is divided among components, which may not be ideal for devices requiring a specific voltage.
Increased Resistance: Adding more components increases the total resistance, reducing the overall current flow.

2. What is a Parallel Circuit?

A parallel circuit is an electrical circuit where the components are connected across multiple paths, allowing current to flow through each component independently. In a parallel circuit, the voltage remains the same across all components, while the current is divided among them. This is beneficial when you need to ensure that each device receives the same voltage, regardless of the others. Understanding the principles of parallel circuits is vital for practical applications like household wiring and complex electronic systems.

2.1 What are the Key Characteristics of a Parallel Circuit?

Parallel circuits are characterized by multiple paths for current flow, uniform voltage across all components, and current division among the components. The total resistance in a parallel circuit is less than the smallest individual resistance, and if one component fails, the other components continue to function independently.

Multiple Paths: There are multiple routes for the current to flow.
Uniform Voltage: The voltage (V) is the same across all components.

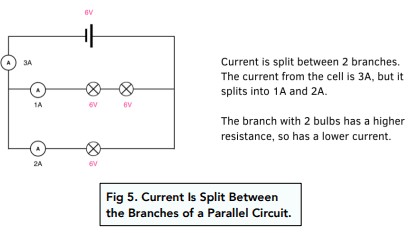

Current Division: The total current (I) is divided among the components.
Total Resistance: The total resistance (Rtotal) is less than the smallest individual resistance.
Failure Tolerance: If one component fails, the other components continue to work.

2.2 How to Calculate Total Resistance in a Parallel Circuit?

Calculating the total resistance in a parallel circuit involves using the reciprocal of the sum of the reciprocals of the individual resistances. For example, if you have two resistors with values of 10 ohms and 20 ohms, the total resistance would be approximately 6.67 ohms. The formula for total resistance in a parallel circuit is:

1 / Rtotal = 1 / R1 + 1 / R2 + 1 / R3 + ... + 1 / Rn

Where:

Rtotal is the total resistance of the parallel circuit
R1, R2, R3, …, Rn are the resistances of the individual resistors

2.3 What are the Advantages and Disadvantages of Parallel Circuits?

Parallel circuits offer significant advantages, especially in terms of reliability and consistent voltage supply, but they also have some limitations.

Advantages:

Reliability: If one component fails, the other components continue to operate.
Consistent Voltage: Ensures each component receives the same voltage, which is ideal for many devices.
Flexibility: Allows multiple devices to be connected without significantly impacting the performance of others.

Disadvantages:

Complex Design: Can be more complex to design and troubleshoot compared to series circuits.
Increased Current Draw: The total current draw from the source is the sum of the currents through each branch, which can overload the power source.
Short Circuit Risk: If a short circuit occurs in one branch, it can draw excessive current and potentially damage the entire system.

3. What is a Series-Parallel Circuit?

A series-parallel circuit combines elements of both series and parallel connections to achieve specific electrical characteristics. These circuits involve some components connected in series and others in parallel within the same circuit. Series-parallel circuits offer a balance between voltage division and current division, providing flexibility in circuit design. Understanding how to analyze and design these circuits is crucial for advanced electronics and complex applications.

3.1 How to Identify Series-Parallel Circuits?

Identifying a series-parallel circuit involves recognizing both series and parallel connections within the same circuit. Look for sections where components are connected in a single line (series) and sections where components are connected across multiple paths (parallel). Understanding the layout is key to analyzing the circuit’s behavior.

Series Sections: Components connected along a single path.
Parallel Sections: Components connected across multiple paths.
Mixed Configuration: The circuit includes both series and parallel arrangements.

3.2 How to Analyze Series-Parallel Circuits?

Analyzing series-parallel circuits requires breaking down the circuit into simpler series and parallel sections. Calculate the equivalent resistance of each section and then combine them to find the total resistance. This process allows you to determine the current and voltage distribution throughout the circuit.

Simplify: Identify and simplify series and parallel sections.
Calculate Equivalent Resistance:
- Series Sections: Add the resistances (Rtotal = R1 + R2 + …).
- Parallel Sections: Use the reciprocal formula (1/Rtotal = 1/R1 + 1/R2 + …).
Combine: Combine the equivalent resistances to find the total resistance of the circuit.
Determine Current and Voltage: Use Ohm’s Law (V = IR) to calculate the current and voltage distribution.

3.3 What are the Applications of Series-Parallel Circuits?

Series-parallel circuits are used in a wide range of applications where specific voltage and current requirements must be met. Some common applications include:

Power Distribution: Balancing voltage and current in power supply systems.
LED Lighting: Configuring LEDs to manage voltage and current for optimal brightness and longevity.
Audio Amplifiers: Designing amplifier circuits with specific gain and impedance characteristics.
Battery Banks: Combining batteries to achieve desired voltage and current levels.

4. Do Series-Parallel Circuits Compare in Key Differences?

The key differences between series, parallel, and series-parallel circuits lie in their configuration, current and voltage distribution, and reliability. Each type of circuit offers unique characteristics that make it suitable for different applications. The most suitable circuit depends on the specific requirements of the electrical system.

4.1 Configuration and Connectivity

Series Circuits: Components are connected in a single path, one after the other.
Parallel Circuits: Components are connected across multiple paths, each with its own branch.
Series-Parallel Circuits: A combination of both series and parallel connections within the same circuit.

4.2 Current and Voltage Distribution

Series Circuits: The current is the same through all components, while the voltage is divided among them.
Parallel Circuits: The voltage is the same across all components, while the current is divided among them.
Series-Parallel Circuits: Both voltage and current are divided differently across various sections of the circuit.

4.3 Reliability and Failure Effects

Series Circuits: If one component fails, the entire circuit stops working.
Parallel Circuits: If one component fails, the other components continue to operate.
Series-Parallel Circuits: The effect of a component failure depends on its location within the circuit. Failure in a series section can interrupt the entire circuit, while failure in a parallel section may only affect that branch.

4.4 Resistance Calculation

Series Circuits: Total resistance is the sum of individual resistances (Rtotal = R1 + R2 + …).
Parallel Circuits: Total resistance is calculated using the reciprocal formula (1/Rtotal = 1/R1 + 1/R2 + …).
Series-Parallel Circuits: Requires breaking down the circuit into simpler sections and applying the appropriate formulas for series and parallel combinations.

4.5 Application Suitability

Series Circuits: Suitable for applications where current needs to be controlled and limited, such as basic lighting circuits with low voltage requirements.
Parallel Circuits: Ideal for applications where consistent voltage is required across multiple devices, such as household wiring.
Series-Parallel Circuits: Used in applications requiring a balance between voltage and current division, such as power distribution systems and complex electronic circuits.

To illustrate these differences, consider the following table:

Feature	Series Circuits	Parallel Circuits	Series-Parallel Circuits
Configuration	Single path	Multiple paths	Combination of series and parallel
Current	Same through all components	Divided among branches	Varies depending on the section
Voltage	Divided among components	Same across all components	Varies depending on the section
Reliability	Entire circuit fails if one component fails	Other components continue to operate	Depends on the location of the failed component
Resistance Calculation	Rtotal = R1 + R2 + …	1/Rtotal = 1/R1 + 1/R2 + …	Break down into series and parallel sections
Typical Applications	Basic lighting circuits, current-limiting circuits	Household wiring, devices needing consistent voltage	Power distribution, complex electronic systems

5. How to Design a Series-Parallel Circuit?

Designing a series-parallel circuit involves carefully considering the specific requirements of the application, including voltage and current needs, component limitations, and desired performance characteristics. A systematic approach ensures that the circuit meets the necessary specifications while maintaining reliability and efficiency.

5.1 Steps for Designing a Series-Parallel Circuit

Define Requirements: Determine the voltage and current requirements for each component in the circuit.
Select Components: Choose resistors, capacitors, and other components based on their voltage, current, and power ratings.
Plan the Configuration: Decide which components should be connected in series and which in parallel to achieve the desired voltage and current distribution.
Calculate Resistance Values: Calculate the necessary resistance values for each component to meet the specified voltage and current requirements.
Simulate the Circuit: Use circuit simulation software to verify the design and identify potential issues before building the physical circuit.
Build and Test: Construct the physical circuit and test its performance under various conditions.

5.2 Best Practices for Optimizing Series-Parallel Circuits

Minimize Power Dissipation: Choose components with appropriate power ratings to prevent overheating and failure.
Ensure Proper Voltage and Current Distribution: Carefully calculate resistance values to ensure that each component receives the correct voltage and current.
Use High-Quality Components: Invest in reliable components to improve the overall performance and longevity of the circuit.
Incorporate Protection Mechanisms: Include fuses, circuit breakers, or other protection devices to prevent damage from overcurrent or short circuit conditions.

6. Troubleshooting Series-Parallel Circuits

Troubleshooting series-parallel circuits requires a systematic approach to identify and resolve issues such as component failures, incorrect wiring, and voltage or current imbalances. Using the right tools and techniques can help you quickly diagnose and fix problems in complex circuits.

6.1 Common Issues in Series-Parallel Circuits

Open Circuits: A break in the circuit path, preventing current flow.
Short Circuits: An unintended path of low resistance, causing excessive current flow.
Incorrect Component Values: Using resistors, capacitors, or other components with incorrect values can lead to improper voltage and current distribution.
Wiring Errors: Incorrectly wired components can disrupt the intended circuit behavior.

6.2 Tools and Techniques for Troubleshooting

Multimeter: Used to measure voltage, current, and resistance in the circuit.
Oscilloscope: Used to visualize voltage signals and identify signal abnormalities.
Circuit Tracer: Used to trace circuit paths and identify breaks or shorts.
Visual Inspection: Inspecting the circuit for damaged components, loose connections, and wiring errors.

6.3 Step-by-Step Troubleshooting Guide

Safety First: Ensure the circuit is de-energized before beginning any troubleshooting procedures.
Visual Inspection: Check for obvious signs of damage, such as burnt components or loose wires.
Voltage Measurements: Use a multimeter to measure voltage at various points in the circuit and compare the readings to the expected values.
Current Measurements: Measure the current flowing through different sections of the circuit to identify imbalances or excessive current draw.
Resistance Measurements: Measure the resistance of individual components to verify their values and identify open or short circuits.
Isolate Faulty Sections: If a problem is identified, isolate the faulty section of the circuit and troubleshoot it separately.
Replace Components: Replace any faulty components and retest the circuit to ensure it is functioning correctly.

7. Advanced Concepts in Series-Parallel Circuits

Exploring advanced concepts in series-parallel circuits can lead to more sophisticated and efficient designs. Understanding these concepts is essential for engineers and advanced hobbyists looking to push the boundaries of circuit design.

7.1 Complex Impedance and AC Circuits

In AC circuits, components like capacitors and inductors introduce impedance, which is the AC equivalent of resistance. Understanding how to calculate impedance in series-parallel circuits is crucial for designing filters, oscillators, and other AC applications.

Impedance (Z): The total opposition to current flow in an AC circuit, measured in ohms.
Capacitive Reactance (Xc): The opposition to current flow offered by a capacitor, calculated as Xc = 1 / (2πfC), where f is the frequency and C is the capacitance.
Inductive Reactance (Xl): The opposition to current flow offered by an inductor, calculated as Xl = 2πfL, where f is the frequency and L is the inductance.

7.2 Thevenin and Norton Equivalent Circuits

Thevenin and Norton equivalent circuits are techniques used to simplify complex circuits into simpler equivalent circuits. These methods are particularly useful for analyzing and designing series-parallel circuits with multiple voltage or current sources.

Thevenin’s Theorem: Any linear circuit can be replaced by an equivalent circuit consisting of a voltage source (Vth) in series with a resistor (Rth).
Norton’s Theorem: Any linear circuit can be replaced by an equivalent circuit consisting of a current source (In) in parallel with a resistor (Rn).

7.3 Superposition Theorem

The superposition theorem states that in a linear circuit with multiple independent sources, the total current or voltage at any point is the sum of the currents or voltages that would be produced by each source acting alone. This theorem simplifies the analysis of complex series-parallel circuits with multiple sources.

Linearity: The circuit must be linear, meaning that the voltage and current are proportional.
Independent Sources: The circuit must contain multiple independent voltage or current sources.

8. Series vs Parallel vs Series-Parallel: Which Circuit is Right for You?

Choosing the right circuit configuration depends on the specific needs of your application. Understanding the advantages and disadvantages of each type of circuit will help you make an informed decision.

8.1 Scenarios Favoring Series Circuits

Current Limiting: When you need to limit the current flowing through components to protect them from overcurrent conditions.
Simple Circuits: For basic circuits where simplicity and ease of design are paramount.
Low Voltage Applications: In applications where low voltage is sufficient and voltage division is acceptable.

8.2 Scenarios Favoring Parallel Circuits

Consistent Voltage: When you need to ensure that all components receive the same voltage, regardless of variations in current draw.
Reliability: In applications where continued operation is critical, even if one component fails.
High Current Applications: For circuits where multiple devices require high current, and the power source can handle the total current draw.

8.3 Scenarios Favoring Series-Parallel Circuits

Balancing Voltage and Current: When you need to balance voltage and current distribution to meet the specific requirements of multiple components.
Complex Applications: For sophisticated electronic systems that require precise control over voltage and current.
Power Distribution: In power supply systems where voltage and current need to be distributed efficiently and reliably.

9. FAQ about Series-Parallel Circuits

Understanding series-parallel circuits can be complex, so here are some frequently asked questions to clarify common points of confusion:

9.1 What happens if a resistor fails in a series-parallel circuit?

The effect of a resistor failure depends on its location. If it’s in a series section, the entire circuit may be interrupted. If it’s in a parallel section, only that branch may be affected.

9.2 Can I convert a series circuit to a parallel circuit?

Yes, by rewiring the components. However, this will change the circuit’s behavior, affecting voltage and current distribution.

9.3 How do I measure current in a series-parallel circuit?

Use a multimeter in series with the component or branch where you want to measure the current. Be sure to select the appropriate current range on the multimeter.

9.4 What is the difference between resistance and impedance?

Resistance is the opposition to current flow in a DC circuit, while impedance is the opposition to current flow in an AC circuit, which includes resistance, capacitive reactance, and inductive reactance.

9.5 How do Thevenin and Norton equivalent circuits simplify analysis?

They reduce complex circuits into simpler equivalent circuits with a single voltage or current source and a single resistor, making it easier to calculate voltage and current values.

9.6 What is the purpose of the superposition theorem?

It allows you to analyze circuits with multiple sources by considering the contribution of each source independently and then summing the results.

9.7 How do capacitors and inductors affect series-parallel circuits in AC?

Capacitors and inductors introduce reactance, which affects the impedance of the circuit and alters the phase relationship between voltage and current.

9.8 What are some common mistakes to avoid when designing series-parallel circuits?

Common mistakes include incorrect component selection, improper wiring, and neglecting to account for voltage and current distribution.

9.9 How can I improve the efficiency of a series-parallel circuit?

Use high-quality components, minimize power dissipation, and optimize voltage and current distribution.

9.10 Are series-parallel circuits used in renewable energy systems?

Yes, they are used in battery banks, solar panel arrays, and other components of renewable energy systems to manage voltage and current levels.

10. Conclusion: Mastering Series-Parallel Circuits

Understanding the principles and applications of series-parallel circuits is essential for anyone working with electronics. By mastering these concepts, you can design and troubleshoot complex circuits with confidence. Whether you’re working on power distribution, LED lighting, or advanced electronic systems, a solid understanding of series-parallel circuits will help you achieve your goals.

Ready to dive deeper into the world of circuit design and analysis? Visit COMPARE.EDU.VN today for more detailed guides, tutorials, and resources. Our expert comparisons and comprehensive information will help you make informed decisions and optimize your electrical projects. Don’t just compare – understand and excel with COMPARE.EDU.VN.

For more information, contact us at:

Address: 333 Comparison Plaza, Choice City, CA 90210, United States
WhatsApp: +1 (626) 555-9090
Website: compare.edu.vn
