1. Understanding Guiding Cameras: An Introduction
Guiding cameras are essential in astrophotography, continuously tracking celestial objects to compensate for any errors during long exposures. Whether you use a parallel guide scope or an off-axis guider (OAG), the right guiding camera is crucial for achieving the best results. Let’s dive into a de camaras comparativa of ZWO guiding cameras, highlighting the differences between each model and assisting you in selecting the ideal one. COMPARE.EDU.VN is your ultimate resource for detailed comparisons, ensuring informed decisions.
1.1 The Role of Guiding Cameras in Astrophotography
In astrophotography, capturing detailed images of faint celestial objects requires long exposure times. During these exposures, even minor tracking errors can lead to blurred images. Guiding cameras address this issue by continuously monitoring a guide star and making real-time adjustments to the telescope’s mount. This ensures that the target object remains precisely centered throughout the exposure, resulting in sharp, well-defined images. Astrophotography necessitates precision tracking which is achieved through guide cameras.
1.2 Types of Guiding Methods
There are two primary methods for guiding a telescope: using a parallel guide scope and using an off-axis guider (OAG).
-
Parallel Guide Scope: This method involves mounting a small telescope (the guide scope) alongside the main imaging telescope. The guiding camera is attached to the guide scope, and it tracks a guide star within the guide scope’s field of view. The advantage of this method is its simplicity and ease of setup.
-
Off-Axis Guider (OAG): An OAG is a device that sits between the telescope and the imaging camera. It uses a small prism to divert a portion of the incoming light to the guiding camera. This allows the guiding camera to track a guide star within the same optical path as the main imaging camera, resulting in more accurate guiding.
1.3 Why Choose ZWO Guiding Cameras?
ZWO (Zhen Wang Optical) is a well-regarded manufacturer of astrophotography equipment, known for its high-quality cameras and accessories. ZWO guiding cameras are a popular choice among astrophotographers due to their excellent performance, reliability, and compatibility with various guiding software and hardware. All ZWO guiding cameras feature monochrome sensors, ensuring high sensitivity and precision. They are fully compatible with the ZWO Asiair (in all its versions) and connect to standard 1.25″ eyepiece holders, ensuring compatibility with virtually all guide scopes and off-axis guiders on the market. Choosing ZWO ensures compatibility and reliability.
2. Technical Specifications of ZWO Guiding Cameras
ZWO offers three main guiding cameras: the ZWO 120 MM Mini, the ZWO 220 MM Mini, and the ZWO 174 MM Mini. Each camera has its own set of technical specifications, making it suitable for different guiding scenarios. Below is a detailed comparison of these specifications, presented in a table format for easy reference.
2.1 Detailed Comparison Table
| Feature | ZWO 120 MM Mini | ZWO 220 MM Mini | ZWO 174 MM Mini |
|---|---|---|---|
| Sensor | Aptina AR0130CS | SC2210 | IMX174LLJ |
| Sensor Type | Monochrome | Monochrome | Monochrome |
| Resolution | 1.2MP 1280×960 | 2.07MP 1920×1080 | 2.3MP 1936×1216 |
| Pixel Size | 3.75um | 4um | 5.86um |
| Sensor Size | 1/3″ 4.8×3.6mm | 1/1.8″ 7.68×4.32mm | 1/1.2″ 11.3×7.1mm |
| Sensor Diagonal | 6.09mm | 8.81mm | 13.2mm |
| FPS | 35 | 14 | 18.4 |
| Read Noise | 4.0 – 6.6e | 0.6 – 3.2e | 3.5 – 6.0e |
| QE% | 75% | 92% | 77% |
| Well Depth | 13ke | 8.78ke | 32ke |
| ADC | 12bits | 12bits | 12bits |
| Connection | USB 2.0 Type C | USB 2.0 Type C | USB 2.0 Type C |
| Weight | 60gr | 60gr | 60gr |
2.2 Understanding Key Specifications
- Sensor: The sensor is the heart of the camera, converting light into electronic signals. Different sensors have varying sensitivities, noise levels, and resolutions.
- Resolution: Measured in megapixels (MP), resolution indicates the number of pixels on the sensor. Higher resolution cameras can capture more detail, but they also require more processing power and storage space.
- Pixel Size: Pixel size refers to the physical size of each individual pixel on the sensor. Larger pixels are more sensitive to light, allowing for better performance in low-light conditions.
- Read Noise: Read noise is the electronic noise generated by the camera during the readout process. Lower read noise results in cleaner images with less background noise.
- Quantum Efficiency (QE): QE is a measure of the sensor’s efficiency in converting photons (light particles) into electrons. Higher QE values indicate that the sensor is more sensitive to light.
- Well Depth: Well depth is the maximum number of electrons that each pixel can hold before becoming saturated. A larger well depth allows for a wider dynamic range and better performance when imaging bright objects.
- ADC (Analog-to-Digital Converter): The ADC converts the analog signal from the sensor into a digital value. A higher bit depth (e.g., 12-bit vs. 8-bit) allows for finer gradations in the digital signal, resulting in more accurate representation of the captured image.
2.3 Detailed Insights into Each Model
- ZWO 120 MM Mini: This camera features the Aptina AR0130CS sensor, offering a resolution of 1.2MP and a pixel size of 3.75um. With a QE of 75% and read noise between 4.0 and 6.6e, it is a reliable option for basic guiding setups.
- ZWO 220 MM Mini: Equipped with the SC2210 sensor, this camera provides a resolution of 2.07MP and a pixel size of 4um. Its standout feature is its low read noise (0.6 – 3.2e) and high QE (92%), making it ideal for guiding in challenging conditions with faint guide stars.
- ZWO 174 MM Mini: This camera uses the IMX174LLJ sensor, offering a resolution of 2.3MP and a larger pixel size of 5.86um. It features a high well depth of 32ke and a QE of 77%, making it suitable for off-axis guiding with larger prisms, ensuring you capture as many guide stars as possible.
3. Guiding with a Parallel Guide Scope
Using a parallel guide scope is a common method for guiding telescopes, although it is becoming less popular compared to off-axis guiding. This setup typically involves guide scopes such as the SkyWatcher Evoguide 50ED, ZWO Mini Guide Scope, and William Optics Uniguide. In most cases, the ZWO 120 MM Mini is adequate for these setups. However, a higher-end model like the ZWO 220 MM Mini can provide better sensitivity, leading to improved guiding performance.
3.1 Recommended Guide Scope and Camera Combinations
When using a parallel guide scope, the combination of the guide scope’s focal length and the camera’s pixel size determines the guiding resolution. For example, a SkyWatcher Evoguide 50ED combined with a ZWO 120 MM Mini provides a resolution of approximately 3.2 arcseconds per pixel (“/pixel). The same guide scope with a ZWO 220 MM Mini yields a resolution of about 3.41 “/pixel.
- SkyWatcher Evoguide 50ED + ZWO 120 MM Mini: A popular and cost-effective combination for beginners.
- ZWO Mini Guide Scope + ZWO 120 MM Mini: Compact and lightweight, ideal for portable setups.
- William Optics Uniguide 32mm + ZWO 120 MM Mini: Offers good performance in a small package.
3.2 Sensitivity vs. Resolution: What Matters Most?
While the resolution is similar between the ZWO 120 MM Mini and ZWO 220 MM Mini when paired with the same guide scope, the key difference lies in their sensitivity. The ZWO 220 MM Mini has lower read noise and higher quantum efficiency (QE%), making it more sensitive to faint guide stars. For short focal length guide scopes, the ZWO 120 MM Mini is generally sufficient. However, the ZWO 220 MM Mini is recommended for longer focal length guide scopes with higher focal ratios.
3.3 Guiding with Longer Focal Length Guide Scopes
For guide scopes with longer focal lengths and higher focal ratios, the ZWO 220 MM Mini is the preferred choice due to its increased sensitivity. These types of guide scopes are less common, as off-axis guiding is often a more effective alternative in such cases.
4. Guiding with an Off-Axis Guider (OAG)
Off-axis guiders (OAGs) are highly recommended to avoid any focusing issues, and ZWO offers the OAG-L, which is exclusively compatible with ZWO guiding cameras (120 Mini, 220 Mini, and 174 Mini). The standard ZWO OAG is also compatible with these guiding cameras, especially when using the optional ZWO helical focuser. This compatibility is due to the camera body design. ZWO guiding cameras feature a cylindrical 1.25″ body, whereas ZWO planetary cameras have a larger back focus and do not fit as well into the eyepiece holders of these helical focusers used with off-axis guiders.
4.1 Why Choose OAG for Precise Guiding?
An off-axis guider (OAG) provides more accurate guiding compared to a parallel guide scope because it uses the same optical path as the main imaging camera. This eliminates differential flexure, which can occur when the guide scope and imaging telescope are not perfectly aligned.
4.2 ZWO OAG Compatibility

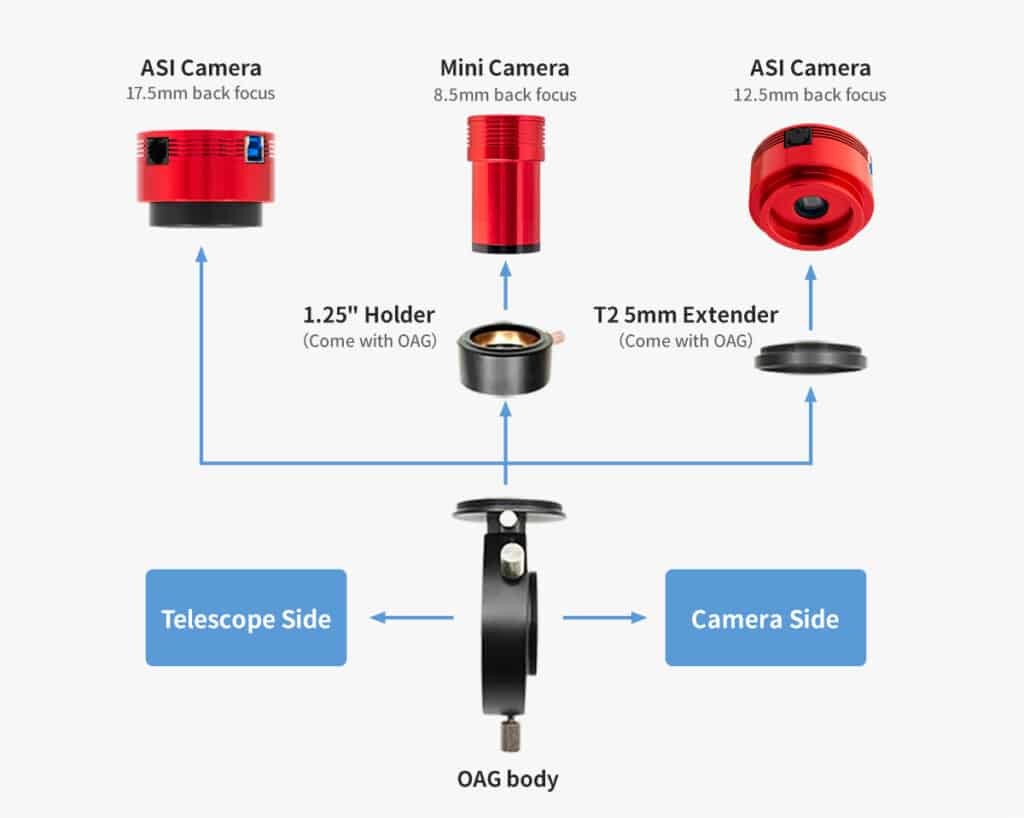

ZWO offers two main off-axis guiders: the standard ZWO OAG and the ZWO OAG-L.
- ZWO OAG: This OAG features a smaller prism (8×8 mm) and is compatible with most ZWO guiding cameras.
- ZWO OAG-L: The OAG-L has a larger prism (12×12 mm), providing a wider field of view for finding guide stars. It is specifically designed for use with the ZWO 174 MM Mini, maximizing the available field of view.
4.3 Recommended OAG and Camera Combinations
- ZWO OAG (8×8 mm prism) + ZWO 220 MM Mini: A good balance of sensitivity and field of view for most guiding scenarios.
- ZWO OAG-L (12×12 mm prism) + ZWO 174 MM Mini: The ideal combination for maximizing the number of available guide stars, especially in crowded star fields.
5. Making the Right Choice: Recommendations Based on Your Setup
Choosing the right ZWO guiding camera depends on your specific needs and equipment. Here are some recommendations based on different guiding scenarios:
5.1 For Parallel Guide Scope Setups
- Short Focal Length Guide Scopes (e.g., SkyWatcher Evoguide 50ED, ZWO Mini Guide Scope): The ZWO 120 MM Mini offers the best value for money.
- Longer Focal Length Guide Scopes: The ZWO 220 MM Mini is recommended due to its higher sensitivity.
5.2 For Off-Axis Guiding Setups
- ZWO OAG (8×8 mm prism): The ZWO 220 MM Mini is a good choice, providing a balance of sensitivity and field of view.
- ZWO OAG-L (12×12 mm prism): The ZWO 174 MM Mini is the ideal choice, maximizing the number of available guide stars.
5.3 Summary of Recommendations
| Guiding Method | Recommended Camera | Rationale |
|---|---|---|
| Parallel Guide Scope (Short) | ZWO 120 MM Mini | Cost-effective, sufficient for most short focal length guide scopes. |
| Parallel Guide Scope (Long) | ZWO 220 MM Mini | Higher sensitivity for longer focal length guide scopes. |
| Off-Axis Guiding (ZWO OAG) | ZWO 220 MM Mini | Good balance of sensitivity and field of view. |
| Off-Axis Guiding (ZWO OAG-L) | ZWO 174 MM Mini | Maximizes the number of available guide stars with the larger prism. |
6. Optimizing Your Guiding Setup: Tips and Tricks
Beyond selecting the right camera, several factors can affect the performance of your guiding setup. Here are some tips and tricks to optimize your guiding and achieve the best possible results.
6.1 Focusing the Guiding Camera
Accurate focusing is crucial for effective guiding. A slightly out-of-focus guide star can lead to inaccurate tracking and poor image quality. Use a Bahtinov mask or a focusing aid to achieve the sharpest possible focus on the guide star.
6.2 Selecting the Right Guide Star
Choosing a suitable guide star is essential for stable guiding. Look for a star that is bright enough to be easily detected by the guiding camera, but not so bright that it saturates the sensor. Also, select a star that is relatively isolated and not too close to other stars or nebulosity, which can interfere with the guiding process.
6.3 Calibrating Your Guiding System
Before you start imaging, you need to calibrate your guiding system. Calibration involves teaching the guiding software how your telescope mount responds to guiding commands. Follow the instructions provided by your guiding software to perform an accurate calibration.
6.4 Minimizing Mechanical Issues
Mechanical issues such as loose connections, flexure, and backlash can negatively impact your guiding performance. Regularly check your equipment to ensure that everything is properly tightened and aligned. Consider using a more robust mount and reducing the weight on your telescope to minimize flexure.
6.5 Using Guiding Software
Several excellent guiding software options are available, such as PHD2 Guiding, MetaGuide, and MaxIm DL. These programs offer a variety of features to help you optimize your guiding, including automatic star selection, guiding graphs, and advanced calibration routines.
7. Deep Dive into Camera Sensors: Aptina AR0130CS, SC2210, and IMX174LLJ
Understanding the sensor technology behind each camera can further refine your decision-making process. Let’s explore the technical nuances of the Aptina AR0130CS, SC2210, and IMX174LLJ sensors.
7.1 Aptina AR0130CS: The Sensor in ZWO 120 MM Mini
The Aptina AR0130CS is a 1/3-inch CMOS sensor known for its balance of performance and cost-effectiveness. Key features include:
- Global Shutter: This allows for capturing the entire image at once, reducing distortion caused by movement.
- Low Noise: The sensor is designed to minimize noise, providing cleaner images.
- High Frame Rate: Capable of capturing up to 60 frames per second at full resolution, making it suitable for tracking fast-moving objects.
7.2 SC2210: The Sensor in ZWO 220 MM Mini
The SC2210 is a high-sensitivity CMOS sensor with a focus on low-light performance. Notable characteristics include:
- Back-Illuminated Technology: This enhances light sensitivity by positioning the photodiodes closer to the light source.
- Ultra-Low Read Noise: Minimizes background noise, allowing for capturing faint details.
- High Quantum Efficiency: Efficiently converts photons into electrons, maximizing light capture.
7.3 IMX174LLJ: The Sensor in ZWO 174 MM Mini
The IMX174LLJ is a 1/1.2-inch CMOS sensor designed for high-speed imaging and excellent sensitivity. Key attributes include:
- Global Shutter: Ensures distortion-free images, even when capturing fast-moving objects.
- Large Pixel Size: 5.86um pixels provide excellent light-gathering capabilities.
- High Dynamic Range: Captures a wide range of light intensities, preserving details in both bright and dark areas.
8. Practical Examples and Case Studies
To further illustrate the real-world performance of these guiding cameras, let’s examine some practical examples and case studies.
8.1 Case Study 1: Guiding a Deep-Sky Object with ZWO 120 MM Mini
Objective: Capture a detailed image of the Orion Nebula (M42) using a SkyWatcher Evoguide 50ED and a ZWO 120 MM Mini.
Setup:
- Telescope: 8-inch Newtonian reflector
- Guide Scope: SkyWatcher Evoguide 50ED
- Guiding Camera: ZWO 120 MM Mini
- Mount: Sky-Watcher EQ6-R Pro
- Guiding Software: PHD2 Guiding
Results:
- Achieved consistent guiding with minimal drift.
- Captured sharp, well-defined details in the Orion Nebula.
- Total exposure time: 2 hours (120 x 60-second exposures).
Conclusion:
The ZWO 120 MM Mini proved to be a reliable and effective guiding camera for this setup. Its balance of sensitivity and resolution allowed for accurate tracking and high-quality images.
8.2 Case Study 2: Guiding with ZWO 220 MM Mini in Challenging Conditions
Objective: Image the Pinwheel Galaxy (M101) using an off-axis guider and a ZWO 220 MM Mini in a light-polluted area.
Setup:
- Telescope: 11-inch Schmidt-Cassegrain
- Off-Axis Guider: ZWO OAG
- Guiding Camera: ZWO 220 MM Mini
- Mount: Celestron CGEM DX
- Guiding Software: PHD2 Guiding
Results:
- The ZWO 220 MM Mini was able to find and track faint guide stars despite the light pollution.
- Achieved consistent guiding with minimal error.
- Captured a detailed image of the Pinwheel Galaxy, revealing intricate details in the spiral arms.
- Total exposure time: 3 hours (180 x 60-second exposures).
Conclusion:
The high sensitivity and low read noise of the ZWO 220 MM Mini made it an excellent choice for guiding in challenging conditions. Its ability to track faint guide stars allowed for capturing detailed images of deep-sky objects even in light-polluted areas.
8.3 Case Study 3: Maximizing Guide Star Availability with ZWO 174 MM Mini and OAG-L
Objective: Capture a wide-field image of the Veil Nebula using a ZWO 174 MM Mini and a ZWO OAG-L.
Setup:
- Telescope: 130mm refractor
- Off-Axis Guider: ZWO OAG-L
- Guiding Camera: ZWO 174 MM Mini
- Mount: Astro-Physics Mach1GTO
- Guiding Software: PHD2 Guiding
Results:
- The large prism of the ZWO OAG-L, combined with the wide field of view of the ZWO 174 MM Mini, ensured that multiple guide stars were always available.
- Achieved exceptionally stable guiding with minimal drift.
- Captured a stunning wide-field image of the Veil Nebula, showcasing its intricate structure and vibrant colors.
- Total exposure time: 4 hours (240 x 60-second exposures).
Conclusion:
The combination of the ZWO 174 MM Mini and the ZWO OAG-L proved to be an ideal solution for maximizing guide star availability and achieving exceptionally stable guiding. This setup is particularly well-suited for wide-field imaging, where finding suitable guide stars can be challenging.
9. Frequently Asked Questions (FAQ)
Here are some frequently asked questions about ZWO guiding cameras and guiding techniques:
-
What is the most important factor to consider when choosing a guiding camera?
Sensitivity is often the most critical factor, especially when using an off-axis guider or imaging in light-polluted areas. A more sensitive camera can detect fainter guide stars, allowing for more accurate tracking.
-
Can I use a color camera for guiding?
While it is possible to use a color camera for guiding, monochrome cameras are generally preferred due to their higher sensitivity and better performance in low-light conditions.
-
Do I need to use a guide scope with a guiding camera?
You can use either a guide scope or an off-axis guider with a guiding camera. A guide scope is a separate telescope mounted alongside the main imaging telescope, while an off-axis guider uses a prism to divert a portion of the incoming light to the guiding camera.
-
How do I connect a ZWO guiding camera to my telescope?
ZWO guiding cameras typically connect to the telescope via a 1.25″ adapter. Some cameras may also come with adapters for other sizes, such as T-mounts.
-
What software do I need to use with a ZWO guiding camera?
You will need guiding software such as PHD2 Guiding, MetaGuide, or MaxIm DL. These programs allow you to control the guiding camera, select guide stars, and make corrections to the telescope’s mount.
-
How do I calibrate my guiding system?
Calibration involves teaching the guiding software how your telescope mount responds to guiding commands. Follow the instructions provided by your guiding software to perform an accurate calibration. This typically involves pointing the telescope at a star and allowing the software to measure the mount’s response to guiding pulses.
-
What is dithering, and why is it important?
Dithering is a technique used to reduce noise in astrophotography images. It involves slightly shifting the telescope’s position between exposures, which helps to average out the effects of hot pixels and other noise sources.
-
How do I troubleshoot guiding problems?
Guiding problems can be caused by a variety of factors, including poor focus, mechanical issues, and atmospheric conditions. Start by checking your focus and ensuring that all connections are tight. If the problem persists, try selecting a different guide star or adjusting the guiding parameters in your software.
-
What is the ideal pixel size for a guiding camera?
The ideal pixel size for a guiding camera depends on the focal length of your guide scope or telescope. As a general rule, you want to aim for a guiding resolution of around 2-4 arcseconds per pixel.
-
Can I use the ZWO ASIair to control my guiding camera?
Yes, the ZWO ASIair is fully compatible with ZWO guiding cameras. It provides a convenient all-in-one solution for controlling your telescope, camera, and guiding system.
10. External Resources and Further Reading
To deepen your understanding of guiding cameras and astrophotography techniques, consider exploring these external resources:
- Cloudy Nights: An online forum for amateur astronomers, offering a wealth of information and discussions on astrophotography.
- Astropixels: A website created by Jerry Lodriguss, providing detailed tutorials and articles on astrophotography techniques.
- PHD2 Guiding Website: The official website for PHD2 Guiding software, offering documentation, tutorials, and a support forum.
- ZWO Website: The official website for ZWO (Zhen Wang Optical), providing information on their products, including guiding cameras and accessories.
11. Conclusion: Elevate Your Astrophotography with the Right Guiding Camera
Choosing the right guiding camera is pivotal for achieving sharp, detailed astrophotography images. This de camaras comparativa of ZWO guiding cameras has provided a comprehensive overview of the ZWO 120 MM Mini, ZWO 220 MM Mini, and ZWO 174 MM Mini, highlighting their technical specifications, strengths, and weaknesses. Whether you opt for a parallel guide scope or an off-axis guider, selecting the appropriate camera can significantly enhance your guiding performance and image quality.
Remember, factors such as sensitivity, resolution, pixel size, and read noise all play a role in determining the best guiding camera for your specific needs. By carefully considering these factors and matching them to your equipment and imaging goals, you can unlock the full potential of your astrophotography setup. Remember, understanding your equipment leads to better imaging.
We hope this de camaras comparativa has been helpful in guiding you toward the right choice. For more detailed comparisons and expert advice, visit COMPARE.EDU.VN, where we simplify complex decisions and help you make informed choices. At COMPARE.EDU.VN, we are committed to providing you with the resources you need to make informed decisions and achieve your goals.
